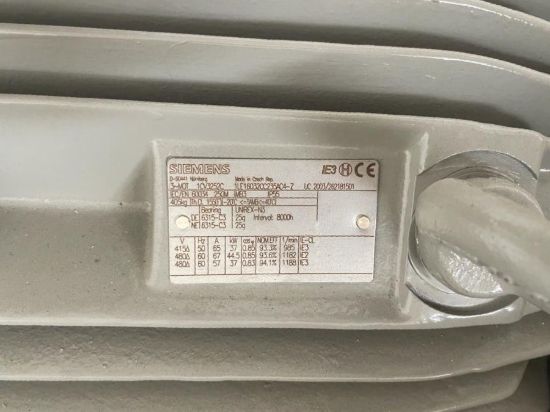

Siemens 1LE1503-2CC23-5AC4-Z Low - Voltage motor

1LE1503-2CC23-5AC4 SD motor type: 1CV3252C low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 6-pole * size 250M * 37 kW (50 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 415 VD * IM B3 6 PTC thermistors for warning and shutdown (4 terminals) Terminal box at top

Be the first to review this product

Manufacturer: Siemens

2,700,000,000 ریال

products.vendors

Price
2,700,000,000 ریال

The new 1LE1 motor family is one of the most compact
in the world, because it is manufactured using innovative
technology. For an optimized design, a compound of highly
conductive materials is used in the rotor (up to frame size 200).
This results in minimum rotor losses and an excellent starting
and switching response.
The design of the 1LE1 motors ensures maximum flexibility and
minimum installation costs. Users benefit from integral lifting
eyes, screw-on feet, reinforced bearing plates with optimum
mechanical properties and easily accessible terminal boxes.
Encoders, brakes and separately driven fans can also be added
without any problems. Smaller inventories make stockkeeping
easier, so motor suppliers can respond to customer
requirements more quickly.
The 1LE1/1PC1 motor family comprises two main series:
• SIMOTICS GP for general purpose applications:
Motors with an aluminum housing
SIMOTICS GP 1LE1/1PC1 motors with an aluminum housing
are suitable for a wide range of standard drive tasks in the
industrial environment. Thanks to their particular low weight,
they are predestined for applications in pumps, fans and
compressors. But they also reliably fulfill their tasks in
conveyor systems and lifting gear. SIMOTICS SD 1LE1 motors with a cast-iron housing are
extremely rugged and are therefore the first choice for
applications under harsh environmental conditions. They
master dust or vibration in mills and mixers as well as the
corrosive atmosphere in the petrochemical industry.

توان (KW)	37
تعداد پل	6
ولتاژ (V)	400/690
نوع نصب	IMB3
درجه حفاظت (IP)	55
فریم سایز	250
تعداد فاز	سه فاز
